Properties

Learn about the properties in your tracking plan

Properties are also known as traits, attributes, metadata, etc. They are information that is attached to events, users or groups that describe the state of the user or the product at the time of the event. Avo allows you to define event, group, user and system properties - each category described below.

Property Definition

A property is defined in the event details within the relevant actions or in the properties view.

• A descriptive Property Name

• A Description that gives additional context of what the property is describing beyond the property name (optional but highly recommended)

• The property value type (required)

• The events that the property is attached to (required)

• The presence of the property on each event – whether it's required or optional (required)

• The constraints defined for the property values (optional but highly recommended)

• The name mappings the property name is mapped to when sending to specific destinations (optional)

Event properties

Event properties describe the current state of your product at the time of the event.

Example

For example the property "Game Mode" on the event "Game Started", is relevant for that specific event, when you analyze your data. You might be want to correlate the completion rate of the game with the Game Mode, to decide how valuable the Game Modes are.

Functionality

Event properties are sent with the event in the event call.

Group properties

Group properties describe the state of a group you defined previously.

Similar to User properties, this information is usually relevant in a larger scope than for exactly that event.

Example

For B2B companies, products are used by multiple companies, each consisting of a number of users. In that case, you can maintain the state of each company with group properties, increase the count of employees when a new user joins a particular company for example.

Functionality

Group properties are updated with the event in the Update Groups action.

Managing Groups

To be able to manage a Group (update Group Properties, associate users or events with Groups) you first need to define the Group:

Creating Group Types

You can create Group Types either from the Properties screen or from the Update Groups action from the Event details.

• From the Properties screen click + Add Group Type
• From the Update Groups action click + Add Group Type

and fill in name and description of your Group Type.

Creating Group properties

Group Properties are properties which belong to a specific group type (e.g. Group Property Member Count for Group Type Workspace). There are also two ways to create Group properties

• From the Properties screen, find the Group Properties section and your Group Type's subsection and click + Add Group Property
• From the Update Groups action choose the Group Type and then + Add Group Property

and fill in name and description of your Group property.

Groups and Group Properties should then be available from the Update Groups action.

User Properties

User properties describe the state of your user. It is information that is usually relevant in a larger scope than for exactly that event.

Example

For example, you might want to correlate the Total Games Played of your users with how likely they are to recommend your product to their friend, to make sure you ask them to do that at the right time.

Some User Properties change rarely, such as "Email", which mostly changes on Signup. And many analytics platforms support you in analyzing all of your data by your user properties, while only sending them along with your events when they actually change.

Functionality

User properties are updated with the Update User Properties.

System properties

System properties represent information that's relevant for all events that you send, and yet do not describe the state of the user.

Example

For example, the user could alter between mobile and web platforms, so you would not necessarily have "Platform" be a user property that gets overwritten each time the user switches platforms. Instead you could set "Platform" to be a System Property in Avo, which are properties that we send along with all events, as event properties for you. The values for such a property could be "Web App", "Desktop App", "iOS App", "Android App", etc.

Functionality

System properties are set in the Avo.initAvo() function. They can be updated with Avo.setSystemProperties() if needed, but otherwise the values persist during the lifecycle of the application.

Event property bundles

Event property bundles are a way to bundle two or more related event properties to quickly and consistently add them to all related events. You can create event property bundles from the event property bundles screen in your Avo workspace (opens in a new tab).

An e-commerce website might want to attach all product properties to cart and checkout events. An example event property bundle could be "Product" containing the following properties:

• Product ID
• Product Name
• Product Price
• Product Quantity

Property types and constraints

In the property modal for event, user and system properties you need to define the type of the values allowed for the property. That definition is used to validate the property.

Avo supports properties with values of the following types and constraints:

• string (enumeration of allowed values)
• integer (minimum and maximum value)
• float (minimum and maximum value)
• boolean (true or false)
• object

Properties values can also be a list of the above mentioned types:

• ['foo', 'bar']
• [1, 2, 3, 4, 5]
• [1.2, 1.3, 1.6]
• [true, false, true, true, false]
• [{'key1': 'value1'}, {'key2': 'value2'}]

Configuring when Properties are required or optional

You can configure when Properties are required on a per-event and per-source basis. That means Avo will not give you an error if that property is missing from an event or source which the property is attached to, in other words it will sometimes be sent.

For per-event granularity you can choose between Sometimes Sent or Always Sent.

For configuring per-event and per-source you can change the overall setting for the property to Depending on Source, revealing the sources available for each event for even more granular control.

Enumeration of allowed string values

Properties of type string can have rules that require the property to be a certain value or one of allowed values. When these rules are applied on the property, the generated avo code will make sure that these values are only being sent.

Source specific allowed values

When a property is sent from multiple sources, you can configure from which sources each value is allowed to be sent.

Replacing a Property

To replace a property with another property, you can use the Replace property with... (see screenshot) action from the context menu in the property modal. This makes sure that the property is replaced in all events where it is used.

Mixpanel Super Properties

The closest equivalent to Mixpanel's Super properties are Avo System Properties. The difference: Mixpanel Super Properties persist on the device, while Avo System Properties persist in a session. All the Mixpanel Super Properties use cases can be achieved with manual usage of cookies/local storage + Avo System Properties.

You would have two options for this:

• Case 1: If you don't need persistence across sessions: You can replace Mixpanel Super Properties with Avo System Properties.
• Case 2: If you need persistence across sessions: You would maintain the data in cookies/local storage, retrieve it when the app starts and provide the values when initializing Avo or before calling Avo functions.

Snowplow Contexts

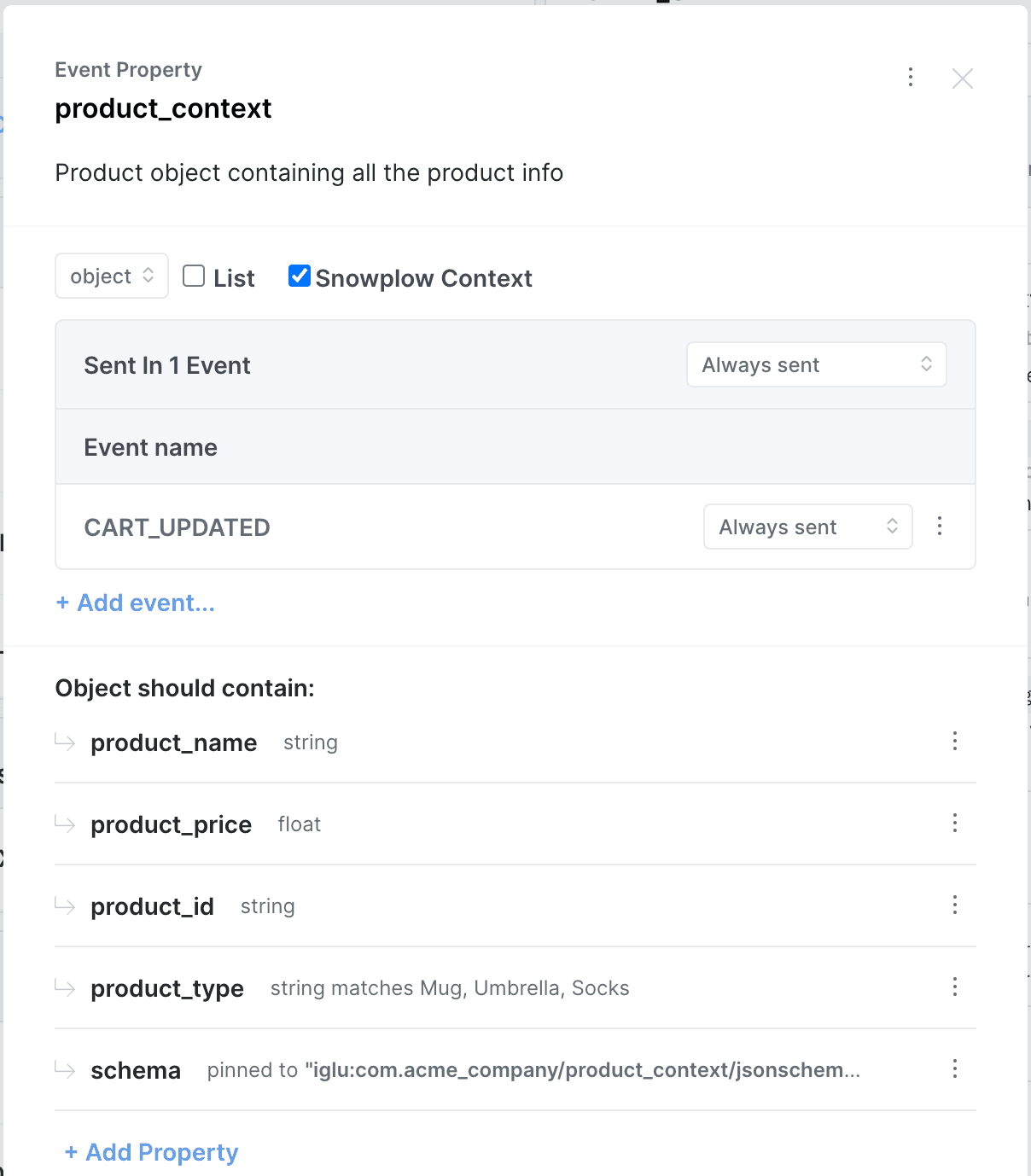

To set up a Snowplow object, the property has to be attached to an event that is being sent to Snowplow. This can be configured in the source configuration of an event. Then you can create a property and set it's type to an object. When you do that, then the option appears on the property to make it a Snowplow context. When you check that box, the code will be generated such that the object is converted to a Snowplow object. You would need to define the schema id at this stage.

Here's how an individual Snowplow context is translated from what is defined in the UI to the context data structure:

{
  "schema": "iglu:com.acme_company/product_context/jsonschema/1-0-0",
  "data": {
    "product_name": "product_name_value",
    "product_price": 10.0,
    "product_id": "product_id_value",
    "product_type": "product_type_value"
  }
}

Each Snowplow context defined on an event in Avo then added to form an array of contexts:

[
  {
    "schema": "iglu:com.acme_company/product_context/jsonschema/1-0-0",
    "data": {
      "product_name": "product_name_value",
      "product_price": 10.0,
      "product_id": "product_id_value",
      "product_type": "product_type_value"
    }
  },
  {
    "schema": "iglu:com.acme_company/page_context/jsonschema/1-0-0",
    "data": {
      "page_name": "page_name_value",
      "page_path": "page_path_value",
      "page_category": "page_category_value"
    }
  }
]

The array of context is then sent with the event where event call to Snowplow that looks like this:

Snowplow.logEvent(
  {
    schema: 'iglu:com.acme_company/event_action/jsonschema/2-0-0',
    data: {
      avo_event_name: 'CART_UPDATED',
      event_property_1: 'event_property_value_1',
      event_property_2: 'event_property_value_2',
    },
  },
  [
    {
      schema: 'iglu:com.acme_company/product_context/jsonschema/1-0-0',
      data: {
        product_name: 'product_name_value',
        product_price: 10.0,
        product_id: 'product_id_value',
        product_type: 'product_type_value',
      },
    },
    {
      schema: 'iglu:com.acme_company/page_context/jsonschema/1-0-0',
      data: {
        page_name: 'page_name_value',
        page_path: 'page_path_value',
        page_category: 'page_category_value',
      },
    },
  ],
);

The Snowplow object above is provided by you, so you get full access to this payload and can easily route it to Snowplow.
